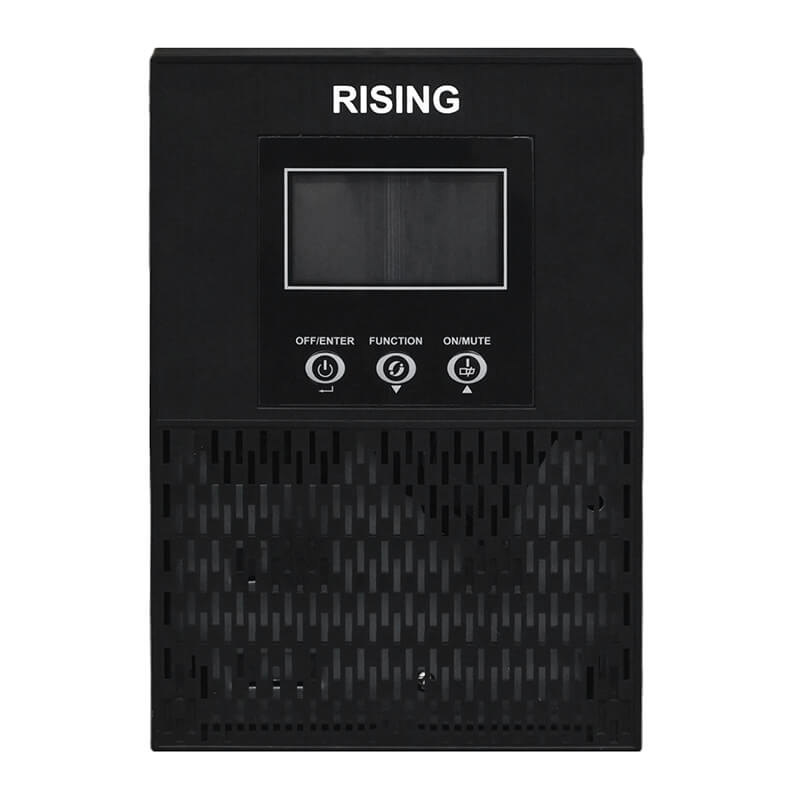

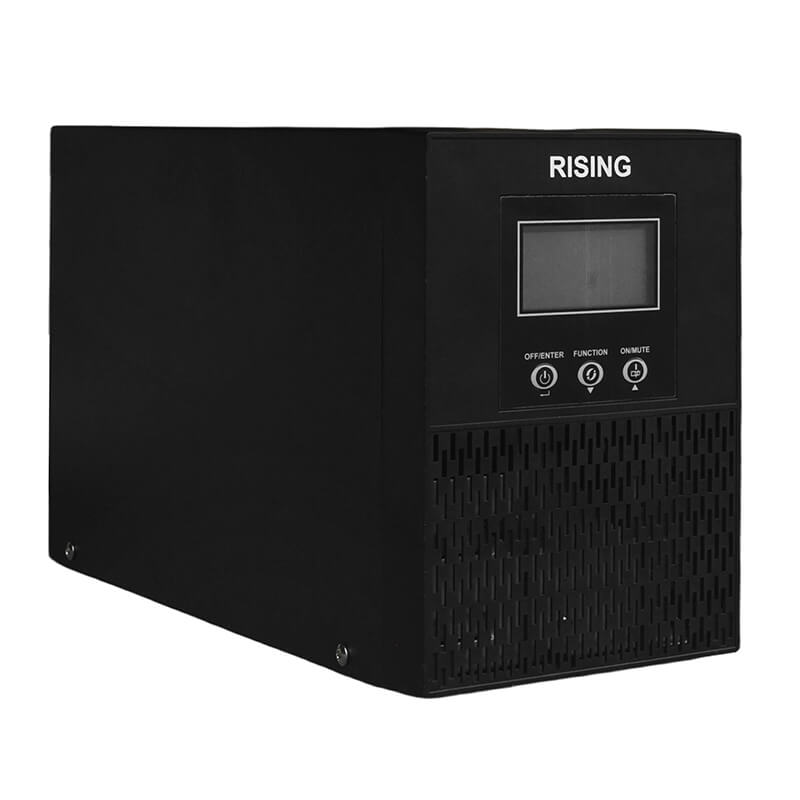

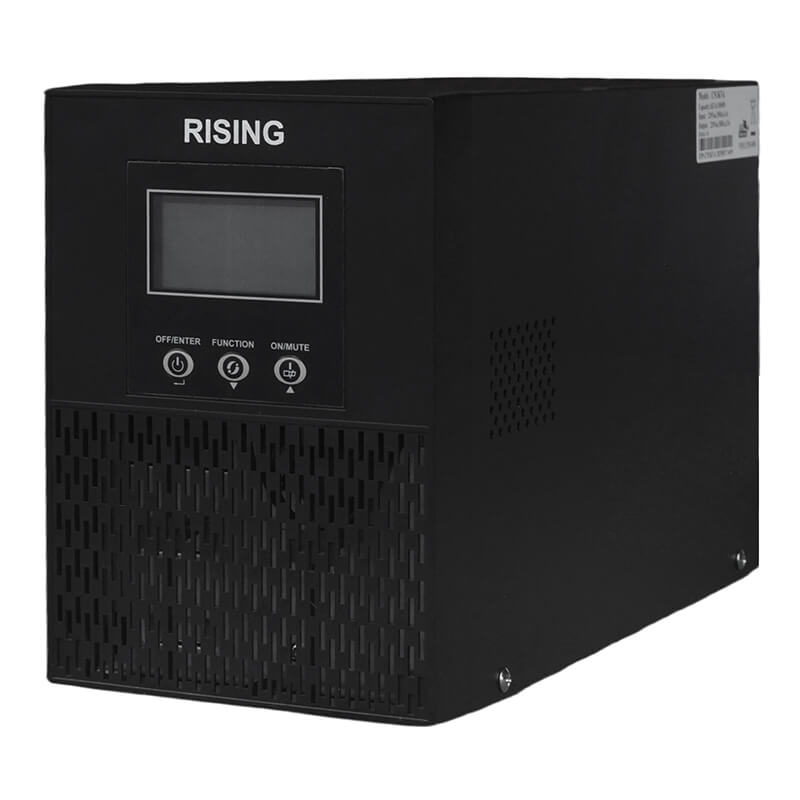

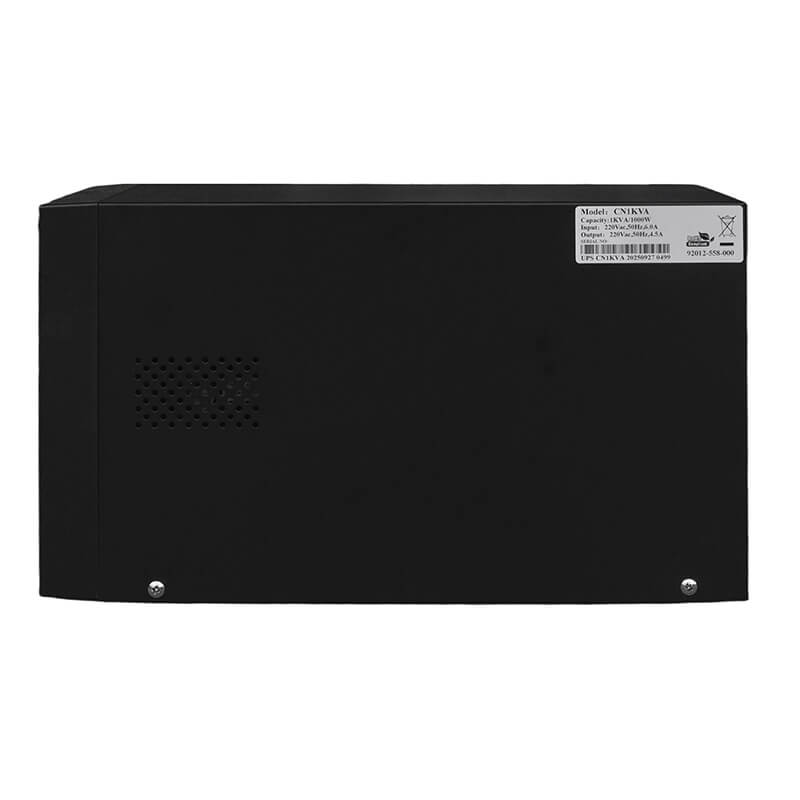

CN1KW

Pure Sine Wave Output, Online Zero Conversion Time
Wide Input Frequency Range, Adjustable From 40-70HZ
Output Short Circuit Protection And Overload Protection
Full-time Lightning Protection, Noise And Surge Protection
The LCD Screen ls To display The StatusParameters At A Glance

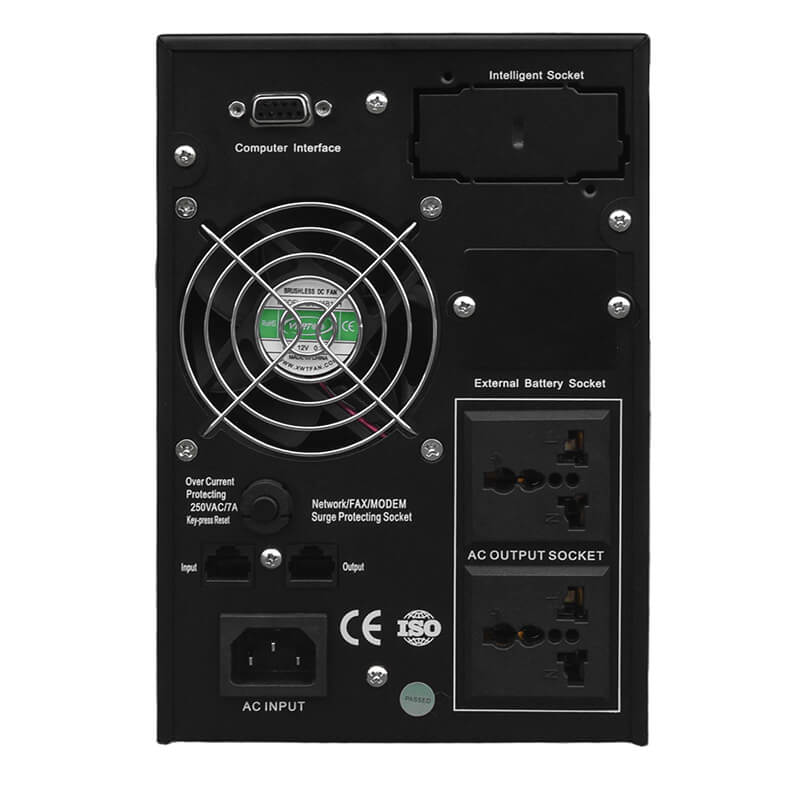

The RS232 Communication Interface ls Applied
Double-Sided Circuit Board DesignWith Higher Safety And Reliability
Various Common Technical ParametersCan be Set on The Panel
Can Be Equipped With The Power Monitoring Software"Electronic Management Expert" to Enable UPS NetworkAnd Remote Monitoring
Output Power 1.0
Super Filter Function, Easy To Solve The Interference

Product Details

Model		1K	2K	3K	6K	10K

Phase		Single-phase grounding

Capacity		1000 VA/800 W	2000 VA/1600 W	3000 VA/2400 W	6000 VA/6000 W	10000 VA/10000 W
Input
Voltage range		110-300VAC at 60%(Load) 160-300 VAC at 100%(Load)			110-300VAC at 50%(Load) 176-300 VAC at 100%(Load)
Frequency range		40Hz～70 Hz
Power factor		100%(Load)≥0.95	100%(Load)≥0.97			100%(Load)≥0.99
Output
Output voltage 220VAC±1%(208,210,230,240 Adjustable)
Voltage range(battery mode)		±1%
Frequency range(synchronous correction range)		47~53 Hz or 57~63 Hz
Frequency range (battery mode)		50Hz 60HZ(Adjustable)±0.25 Hz
Surge ratio		3:1
Todal Hammonic distortion		≤3%THD (Liear load) ≤6%THD(Non-Liear load)
Transfer time	AC to DC	Oms
	Inversion to bypass	4 ms(Standard)
Waveform		Pure sine wave
Battery
Standar model	Battery Model	12V/7AH
	Quantity	2	4	6	12	16
	Maximum charge current	1.0A(max)			1A,2A,3A,4A,5A,6A,7A,8A,9A,10A (Adjustable)
	Charging voltage	27.5(41.0)VDC±1%	55(82.1)VDC±1%	82.1(110)VDC±1%	165VDC±1%	220VDC±1%
Long- run model	Battery Model	Depend on requirments
	Quantity	3	6	8	16
	Maximum charge current	1A,2A,3A,4A,5A,6A,7A,8A,9A,10A(Adjustable)
	Charging voltage	41.0VDC±1%	82.1VDC±1%	110VDC±1%	220VDC±1%
Appearance
LCD or LED display		System state,Load power,battery capacity,utility power mode,battery mode,bypass mode,fault indication
Warning
Batery model		Alarm beeps every four second
Low battery		Alarm beeps every second
Overload		Alarm beeps every second
Fault		Alarm beeps continuously
Appearance&Dimension
Standar model	Dimension(mm)	352×145×213mm	450x192x335mm		384x192x730mm(With wheels)

	Net weight(kg)	8.8kg	19.5kg	23.7kg	40.78kg	50.1kg
Long- run model	Dimension(mm)	352×145×213mm	450x192x345mm		450x192x335mm

	Net weight(kg)	5.8kg	12.6kg	13kg	9.42kg	10.4kg

Operating environment
Temperature and Humidity		Relative humidity 20-90%and temperature 0-40 "C(no condensation)

Noise		<50dBA@1 meter
Control management

Smart Rs-232		Windows@2000/2003/XP/Vista/2008,Windows@718 Linux,Unix
Optinal SNMP		Power management supports SNMP management and network management
